Pressed Steel Flanged Beam Clamp for Attaching H20 Beam to Steel Walings

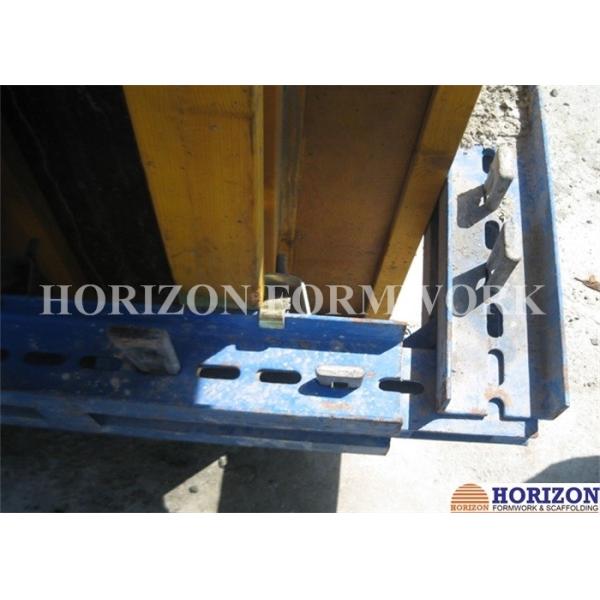

It reliably connects the H20 timber beam to the waler at any required position. The rigid round bar stirrup and the swiveling fingers grasp and tighten the waler flanges to the beam.
Mount the flange clamps with the hexagonal nuts facing downwards (towards the bottom of the formwork). This protects the nuts against soiling during pouring concrete.
| Bar Ø (mm) | Width (mm) | Width-across (mm) | Weight (Kg) |
| 12 | 120 | 190 | 1.0 |
Wall Formwork Components:
| Components | Specification / description |
| Wall formwork panel | For all vertical formworks |
| H20 Timber beam | Water proof treated
Height: 200mm
Width: 80mm
Length: as per table size |
| Steel waling | Painted, powder coated
[12 steel channel |
| Flange clamp | Galvanized
To connect steel waling and H20 beams |
| Panel strut | Painted
help formwork panel erection |
| Waling connector 80 | Painted
Used for formwork panels alignment |
| Corner connector 60x60 | Painted
Used for forming inner corner formwork with wedge pins |
| Top scaffold bracket | Painted,
severs as safety working platform |
Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.
Who we are:
HORIZON FORMWORK is a professional formwork solution provider for years, supplying: Formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.
What we offer:
Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc.
On-site supervising support is available on request.
Why us:
With 10 years of experience, we know exactly what you need;
Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request.
Prompt action on customer's requirments.
We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.
HORIZON FORMWORK, your reliable formwork partner!
